D-MAX D1-Spec Front Tension Rods for Toyota Mark II / Chaser / Cresta JZX90/JZX100 (1992–2001)

SKU: DMSU026AT5
Sale price$327.95

Fits

Not sure it fits? Send us your chassis code and we'll check.

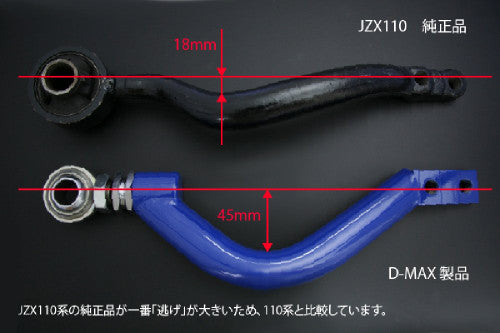

The relief width has been greatly improved based on the JZX110 series genuine tension rod! (Compared with JZX110 genuine product + 27mm clearance width increase) D1GP drivers have repeatedly conducted driving tests to prove its strength. Of course, his 90/100 series has been limited to increasing the steering angle, but with this tension rod, the settings for the suspension have been greatly expanded.

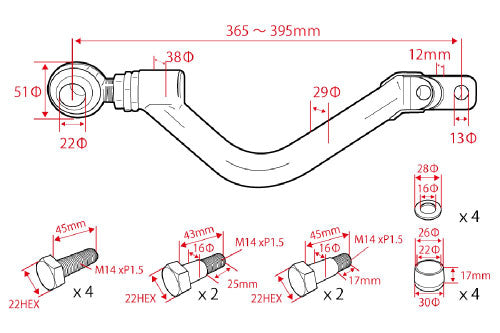

■ Specifications

Rod diameter 29Ф
rod thickness ―
Pillow outer diameter 51Ф
Pillow inner diameter 22Ф
Adjustment method turnbuckle type
Adjustment screw pitch 1.5mm
Adjustment width 30mm



■ Accessories

Color Four
washer 4 pieces
90 series dedicated bolt 4 pieces
100 series dedicated bolt 4 pieces



*For JZX90 series, please use the included black screws. For JZX100/JZX110/SXE10, please use the included silver screws.

■ Compatible model

Compatible GX90/JZX90/GX100/JZX100/JZX110/SXE10
Not compatible 4WD vehicles of the above models, JZA80/JZZ30/JZS160
