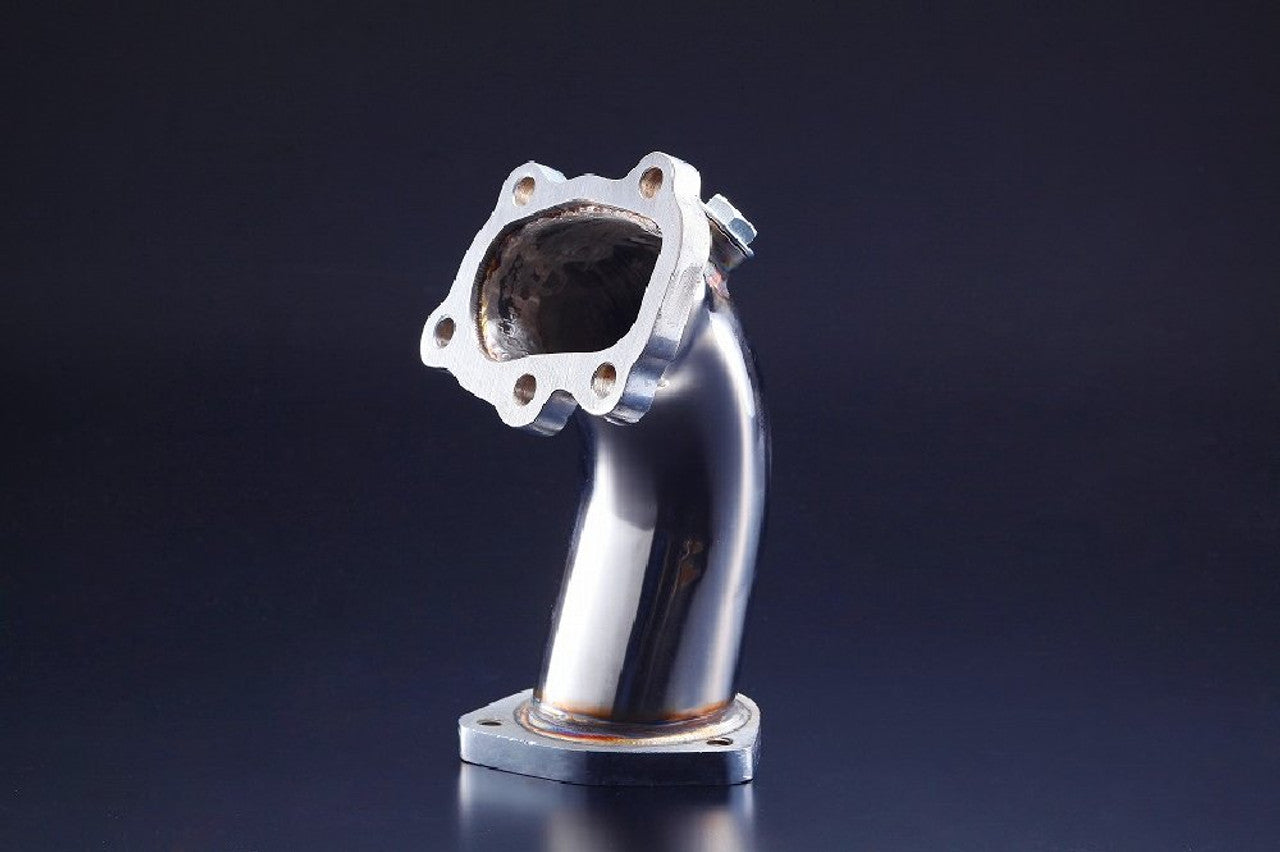

D-MAX Turbo Outlet Pipe for SR20DET

SKU: DMEN117AT1
Sale price$174.80

Fits

Engine

  • SR20DET

Not sure it fits? Send us your chassis code and we'll check.


For outlet pipes, it is important to increase outlet capacity, lower secondary exhaust pressure, increase exhaust efficiency, and prevent exhaust interference. Compared to conventional products, it has a deeper shape to ensure an efficient flow of exhaust from the turbine to the front pipe side. By using it in combination with the front pipe, it is designed to ensure the true performance of the turbine.

■Material

Stainless steel SUS304

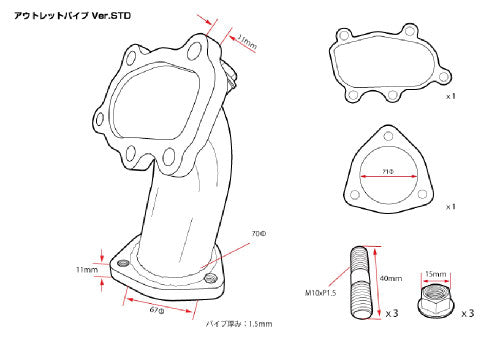

■Specifications

pipe thickness 1.5mm
Outlet diameter 73Ф *GTR=75Ф
Outlet inner diameter 67Ф *GTR=70Ф
volume 770cc *GTR=935cc
stud bolt length 40mm
screw pitch 1.5mm



■Accessories

Outlet side heat resistant paper gasket
front pipe side heat resistant paper gasket
Stud 3 pieces
nut Three
